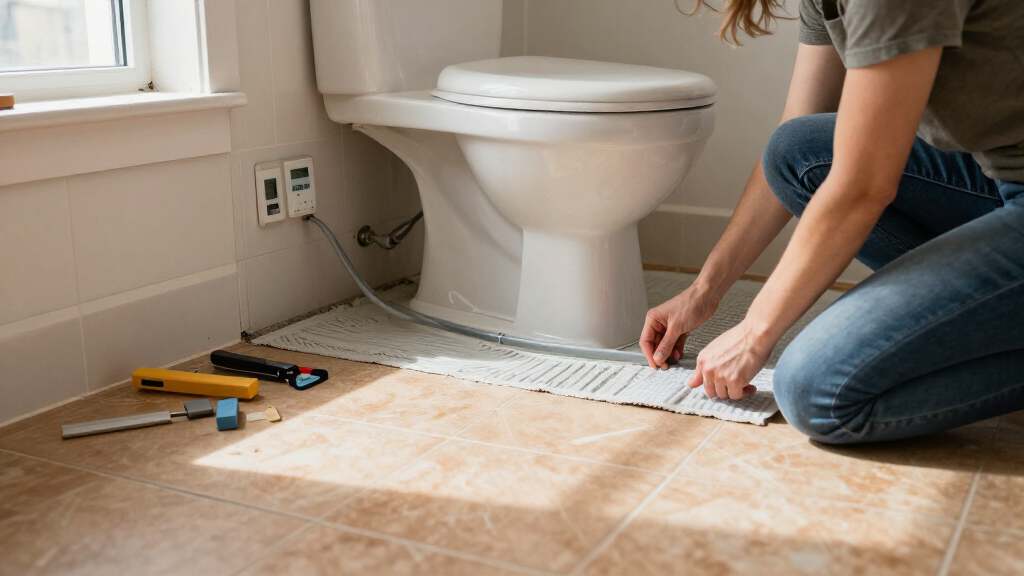

The best basement bathroom floor heating kits match your uncovered floor area, electrical supply, and tile plan—not just the room’s overall square footage. My best overall pick is the LuxHeat 45 sq. ft. system with an uncoupling membrane, which combines bathroom-friendly coverage with a layer designed to support tile installation. For larger rooms, the 150 sq. ft. LuxHeat kit stands out for broad coverage, while the 20 sq. ft. LuxHeat Wi-Fi system suits compact bathrooms where connected control matters. The main tradeoffs are coverage versus fit, 120V versus 240V wiring, and a simpler mat versus an added membrane or smart thermostat. Read on for the full comparison, selection criteria, and guidance for matching a kit to a basement bathroom.
Get backup power and energy gear delivered free — and shop member deals
- Fast, free delivery on millions of items
- Access to Prime Big Deal Days deals on October 6–7
- Prime Video, Amazon Music and more included
Key Takeaways
Coverage is not the same as room size: the 15–20 sq. ft. kits suit small clear floor zones, while 100–150 sq. ft. options are aimed at substantially larger heated areas.
An uncoupling membrane changes the installation equation: the 45 sq. ft. LuxHeat and 50 sq. ft. VEVOR options pair heat with a membrane, which can be useful under tile but adds planning and installation steps.
Voltage choices deserve early attention: the lineup includes 120V mats and 240V kits, so checking the available circuit and electrical requirements before choosing can prevent a costly mismatch.
Smart controls are a convenience, not a coverage upgrade: Wi-Fi models appear in both 20 and 120 sq. ft. formats, while standard programmable thermostats may be enough for buyers who want scheduled heating without connected features.
Kit completeness varies by project needs: thermostat type, included membrane, and mat or cable format distinguish products more than brand name alone; confirm the contents and installation instructions before purchase.
| basement bathroom floor heating kit | Thermostat | Warranty | Voltage | Coverage |
|---|---|---|---|---|
| 100 Sq. Ft. Electric Radiant F | Programmable, with 4 operating modes | — | 120V | 100 sq. ft. |
| LuxHeat 120 sq. ft. Radiant Fl | OJ Microline UDG4-4999 touchscreen programmable thermostat with floor sensor, built-in Class A GFCI, and 7-day schedule | 25-year limited warranty for heating system; 3-year thermostat warranty | 120V | 120 sq. ft. |
| LuxHeat 45 sq. ft. Electric Ra | UTN4-4999 non-programmable, 15A, dual air/floor sensing, integrated Class A GFCI | 25-year limited cable warranty; 50-year limited membrane warranty; 3-year thermostat factory warranty | 120V | — |
| LuxHeat 45 Sq Ft Electric Heat | OJ Microline UDG-4999 programmable thermostat with floor sensor, dual sensing, built-in GFCI, and 7-day schedule | 25-year limited heating mat warranty; 3-year thermostat warranty | — | — |
| VEVOR Floor Heating Mat System | Programmable smart thermostat, 15A | — | 120V | — |
| Warming Systems 15 Sq Ft 120V | UDG4-4999 touchscreen, 7-day programmable | — | 120V | 15 sq ft |
| LuxHeat 50 sq. ft. Electric Ra | Programmable touchscreen, 15A, with integrated Class A GFCI | Cable: 25 years; membrane: 50 years; thermostat: 3 years | — | — |
| LuxHeat 20 sq. ft. Electric Fl | OJ Microline UDG4-4999 programmable touchscreen | Heating kit: 25-year limited; thermostat: 3-year factory | — | 20 sq. ft. |
| LuxHeat 20 sq ft Electric Floo | OJ Microline UWG4-4999 WiFi programmable touchscreen | 25-year limited warranty | — | 20 sq. ft. |
| LuxHeat 150 Sq Ft Electric Rad | OJ Microline UTN4-4999, non-programmable, dual air/floor sensing, built-in GFCI | Heating kit: 25-year limited; thermostat: 3-year factory | 120V | 150 sq. ft. |
| LuxHeat 45 Sq Ft Electric Floo | OJ Microline UDG-4999 programmable thermostat | 25-year limited heating-system warranty; 3-year thermostat factory warranty | 240 V | 45 sq ft |
| LuxHeat 120 sq ft 240V Underfl | UWG5-4999 Wi-Fi programmable thermostat with Class A GFCI | 25-year limited heating-system warranty; 3-year thermostat factory warranty | 240 V | 120 sq ft at 3-inch spacing |
| LuxHeat 120 sq. ft. Electric R | Wi-Fi programmable touchscreen with integrated Class A GFCI | 25-year LuxHeat warranty; 50-year Prova warranty | 120 V | — |
More Details on Our Top Picks
100 Sq. Ft. Electric Radiant Floor Heating Mat System with Programmable Thermostat
For a basement bathroom with a broad, open floor area, this 100-square-foot, 120V mat offers more coverage than the 45-square-foot LuxHeat kits in this lineup. Its adhesive backing helps hold the mat in position as the floor assembly is laid, while the programmable thermostat with air and floor sensors gives control over both room conditions and floor temperature. GFCI detection, overheat protection, child lock, and an installation monitor add useful safeguards for a bathroom project. The tradeoff is that the heating cable cannot be cut or shortened, so the layout must match the kit’s coverage and installation rules. Compared with LuxHeat’s 120-square-foot system, this kit covers less area but may suit a medium-large room without as much excess coverage.
Pros:- 100-square-foot coverage suits larger bathroom floors than the 45-square-foot kits
- Programmable thermostat uses both air and floor sensors
- Adhesive-backed mat helps hold its position during installation
- Includes GFCI detection, child lock, overheat protection, and an installation monitor
Cons:- Heating cable must not be cut or shortened, limiting layout changes
- The specified coverage and installation guidelines leave little room for improvising the mat layout
Best for: Homeowners heating a medium-to-large basement bathroom who want a 120V mat, programmable control, and dual sensing.
Not ideal for: Small bathrooms or irregular floor plans where a fixed 100-square-foot cable layout would leave too much uncovered or make fitting the mat difficult.
- Coverage:100 sq. ft.
- Voltage:120V
- Current:10.0A
- Power density:12W/sq. ft.
- Mat dimensions:19.69 in. wide x 65.62 ft. long
- Thermostat:Programmable, with 4 operating modes
- Sensors:Air and floor
- Cable certification:CSA-certified
- Wet-location use:Suitable
Our verdict“Choose this kit for a larger basement bathroom needing 100 square feet of 120V coverage, but pick a smaller LuxHeat mat for a compact or irregular floor.”
LuxHeat 120 sq. ft. Radiant Floor Heating System with Programmable Thermostat, 120V
This LuxHeat kit stands out for pairing 120-square-foot coverage with two self-adhesive mats, giving a basement bathroom installer more layout flexibility than the single mat in the 100-square-foot system. The mats can be repositioned, turned, or rotated to fit the planned floor area, while the touchscreen thermostat brings a 7-day schedule, self-learning, and built-in GFCI. Power logging and cable monitors add practical oversight during setup and operation. The main limitation is shared by many electric mat systems: the wires must be embedded in mortar, thinset, or self-leveling underlayment, and the heating wire itself cannot be shortened. Compared with the 45-square-foot LuxHeat mat, this is a better match for a large bathroom, but its greater coverage and 12A draw call for careful circuit planning.
Pros:- Two mats provide more layout options across 120 square feet
- Touchscreen thermostat includes a 7-day schedule, self-learning, and built-in GFCI
- Cable monitors and alarms help flag installation or cable problems
- Heating cables are listed for wet locations
Cons:- Heating wires must be embedded in mortar, thinset, or self-leveling underlayment
- Heating wire cannot be cut or shortened to adapt the cable length
- The 12A load requires checking circuit capacity before installation
Best for: Renovators heating a large, open basement bathroom who want two repositionable mats and scheduled thermostat control.
Not ideal for: Owners of small or highly segmented bathrooms, or anyone unable to provide a suitable 120V circuit and underlayment installation.
- Coverage:120 sq. ft.
- Voltage:120V
- Current:12A
- Power:1,440W
- Power density:12W/sq. ft.
- Heating mats:2 self-adhesive mats
- Combined mat length:73.2 ft.; each mat is 20 in. wide
- Thermostat:OJ Microline UDG4-4999 touchscreen programmable thermostat with floor sensor, built-in Class A GFCI, and 7-day schedule
- Warranty:25-year limited warranty for heating system; 3-year thermostat warranty
Our verdict“Pick this LuxHeat system when a large basement bathroom needs flexible 120-square-foot coverage and you can accommodate its underlayment and electrical requirements.”
LuxHeat 45 sq. ft. Electric Radiant Floor Heating System with Thermostat and Uncoupling Membrane
This kit is the most tile-focused option here: it pairs 45 square feet of heating cable with a 60-square-foot uncoupling membrane designed for crack prevention, waterproofing, and load support. That combination may appeal in a basement bathroom where the tile assembly needs more than warmth alone. The cable’s custom layout can suit a room that does not fit a simple rectangular mat, unlike the pre-spaced 45-square-foot LuxHeat mat, but it takes more attention to arrange and cover the wire with thinset or self-leveler. Its thermostat includes GFCI and dual air/floor sensing, though it is non-programmable; the programmable mat kit is a better fit for buyers seeking scheduled control. This is a specialized tile system, not the simplest route to heat beneath varied flooring.
Pros:- Includes heating cable, thermostat, floor sensor, alarm, and uncoupling membrane
- Membrane is designed for crack prevention, waterproofing, and load support
- Custom cable layout can suit bathroom shapes that do not match a fixed mat
- Thermostat has integrated Class A GFCI and dual air/floor sensing
Cons:- Thermostat is non-programmable
- Heating cable must be covered with self-leveler or thinset and cannot be shortened
- The membrane’s tile-oriented assembly is less suited to buyers seeking a simple, flooring-flexible mat kit
Best for: Tile-focused remodelers with a compact basement bathroom who want an uncoupling membrane alongside custom-layout heating cable.
Not ideal for: Buyers seeking a quick mat layout, scheduled thermostat control, or a kit intended to work across flooring types without a tile-oriented membrane assembly.
- Heating coverage:45 sq. ft.
- Voltage:120V
- Current:4.5A
- Power:540W
- Cable length and spacing:180 ft.; 3 in. spacing
- Thermostat:UTN4-4999 non-programmable, 15A, dual air/floor sensing, integrated Class A GFCI
- Membrane:60 sq. ft. coverage; 0.26 in. (6.5 mm) thick
- Warranty:25-year limited cable warranty; 50-year limited membrane warranty; 3-year thermostat factory warranty
- Certifications:cULus; membrane ANSI and TCNA approved
Our verdict“Choose this LuxHeat package for a small tiled basement bathroom where membrane benefits matter more than programmable scheduling or a simple pre-spaced mat.”
LuxHeat 45 Sq Ft Electric Heated Floor System with Programmable Thermostat
For a compact basement bathroom with a relatively simple floor plan, this LuxHeat kit keeps the setup focused: a 45-square-foot self-adhesive mat, cable monitor and alarm, and a programmable thermostat with floor sensor and built-in GFCI. The mesh is pre-spaced, so the layout is more guided than the custom cable in LuxHeat’s membrane bundle, and the mat can be turned or rotated to fit the room. Its 7-day schedule and dual air/floor sensing give it a control advantage over that bundle’s non-programmable thermostat. The tradeoff is that the cable still needs embedding in thinset, mortar, or self-leveling underlayment, and it cannot be cut short. Compared with the 50-square-foot VEVOR kit, this provides slightly less coverage but has more clearly specified thermostat and mat details.
Pros:- Self-adhesive, pre-spaced mat simplifies positioning for a straightforward layout
- Programmable thermostat supports a 7-day schedule and dual air/floor sensing
- Built-in GFCI, cable monitor, and alarm add installation and operating safeguards
- 25-year limited warranty for the heating mat
Cons:- Heating wire must be embedded in thinset, mortar, or self-leveling underlayment
- Heating wire cannot be cut or shortened to fit a smaller floor area
- 45-square-foot coverage may not serve larger basement bathrooms
Best for: DIY renovators heating a compact, mostly rectangular basement bathroom who want a pre-spaced mat and scheduled thermostat control.
Not ideal for: Buyers with a floor area above 45 square feet, a complex layout requiring custom cable routing, or no plan for embedding the wire in underlayment.
- Heating coverage:45 sq. ft.
- Mat dimensions:20 in. wide x 27.4 ft. long
- Voltage and amperage:120V; 4.5A
- Power output:540W
- Power density:12W/sq. ft.
- Thermostat:OJ Microline UDG-4999 programmable thermostat with floor sensor, dual sensing, built-in GFCI, and 7-day schedule
- Mat features:Self-adhesive mesh with 3 in. pre-spaced cable
- Warranty:25-year limited heating mat warranty; 3-year thermostat warranty
- Certifications:UL-certified heating cables; cULus-approved thermostat
Our verdict“Choose this kit for a compact, straightforward bathroom where a pre-spaced mat and scheduled controls matter more than custom cable routing or larger coverage.”
VEVOR Floor Heating Mat System, 50 sqft 120V, Decoupling Membrane, Smart Thermostat & Alarm, Easy Install for Tile, Stone & Vinyl Flooring
The VEVOR kit targets buyers who want a compact package rather than the broad coverage of LuxHeat’s 120-square-foot system. At 50 square feet and 12W per square foot, it fits a modest basement bathroom, while the included smart thermostat offers scheduling, dual-sensor monitoring, and GFCI protection. The listed flooring compatibility spans tile, stone, laminate, and vinyl, a broader stated range than the tile-centered LuxHeat cable-and-membrane bundle. That flexibility is appealing, but the supplied details are less specific about mat dimensions, electrical current, and installation layers than the LuxHeat kits, so I would confirm the instructions and floor assembly before purchase. Coverage is capped at 50 square feet per kit, and the system requires a dedicated 120V circuit, making it a poor match for a larger room or a circuit already near capacity.
Pros:- 50-square-foot coverage fits a compact bathroom better than the larger LuxHeat 120-square-foot system
- Smart thermostat includes scheduling, dual-sensor monitoring, and GFCI protection
- Product description lists tile, stone, laminate, and vinyl compatibility
- Decoupling membrane and alarm are included in the described kit
Cons:- Coverage is limited to 50 square feet per kit
- Requires a dedicated 120V circuit
- Provided specifications do not state mat dimensions or current, limiting installation planning detail
Best for: Owners of a modest basement bathroom who want a compact kit with smart scheduling and stated compatibility across several flooring types.
Not ideal for: Renovators heating more than 50 square feet or buyers who need detailed mat dimensions and installation specifications before planning the floor assembly.
- Coverage area:50 sq. ft.
- Voltage:120V
- Power density:12W/sq. ft.
- Thermostat:Programmable smart thermostat, 15A
- Thermostat features:Dual-sensor monitoring, GFCI protection, and scheduling
- Included system components:Heating mat system, decoupling membrane, thermostat, and alarm
- Listed flooring compatibility:Tile, stone, laminate, and vinyl
- Model number:SHHC-600
- Item weight:16.53 lb.
Our verdict“Pick the VEVOR kit for a small bathroom where smart controls and broad stated flooring compatibility appeal, but choose a larger, more fully specified system for extensive coverage.”
Warming Systems 15 Sq Ft 120V Electric Floor Heating Mat Kit with Touchscreen Thermostat
For a compact basement bathroom, this 15-square-foot mat keeps the system straightforward: it includes a programmable touchscreen thermostat, floor sensor, and installation monitor, rather than asking you to source those separately. Its 1/8-inch profile is intended for tile, stone, or porcelain, including wet areas, and the mat can be turned to suit different room layouts. Compared with the LuxHeat 20 sq. ft. Electric Floor Heating Mat Kit, this covers less area but may suit a powder room where a larger mat would be unnecessary. The 25-year warranty and UL listing for the USA and Canada add useful reassurance. The tradeoff is the limited coverage, and this is a poor fit if your basement bathroom has non-tile flooring or a broad open floor to heat.
Pros:- Includes a 7-day programmable touchscreen thermostat, floor sensor, and installation monitor.
- Flexible mat can be turned to fit different room layouts.
- Suitable for wet-area installation under tile, stone, or porcelain.
- UL listed for the USA and Canada, with a 25-year warranty.
Cons:- 15-square-foot coverage is restrictive for larger bathrooms.
- Designed for tiled flooring rather than a wide range of floor finishes.
Best for: Homeowners heating a small, tile-floored basement bathroom who want the thermostat and installation monitoring included.
Not ideal for: Owners of larger bathrooms or rooms with laminate or other non-tile flooring, because coverage is limited to 15 square feet and the kit is designed for tile, stone, or porcelain.
- Coverage:15 sq ft
- Mat dimensions:108 × 20 × 0.13 inches
- Voltage:120V
- Power:180W
- Power density:12W per sq ft
- Thermostat:UDG4-4999 touchscreen, 7-day programmable
- Safety:Built-in Class A GFCI protection and installation warning monitor
- Certification and warranty:UL listed for the USA and Canada; 25 years
Our verdict“Choose this kit for a small, tiled basement bathroom where included controls and a long warranty matter more than broad coverage.”
LuxHeat 50 sq. ft. Electric Radiant Floor Heating System with Programmable Thermostat
This kit is the strongest fit here for a tile-floor renovation that needs more than a small mat. Its 50-square-foot heating cable comes with a 70-square-foot uncoupling membrane, so the package addresses both floor heating and the tile assembly rather than just supplying the heater. The membrane is designed for waterproofing, crack prevention, and load support, while the thermostat adds 7-day scheduling, dual air-and-floor sensing, child lock, and integrated GFCI protection. Compared with the LuxHeat 20 sq. ft. Electric Floor Heating Mat Kit, this covers more area and includes the membrane, but it calls for more installation work and a larger tiled project. The cable must be embedded in thinset or self-leveler and cannot be shortened, so careful layout planning is needed before installation.
Pros:- Includes 50 sq. ft. of heating cable and 70 sq. ft. of uncoupling membrane.
- Membrane is designed for waterproofing, crack prevention, and load support under tile.
- Thermostat includes 7-day scheduling, dual sensing, child lock, and integrated GFCI.
- Heating cable is cULus certified and listed for wet locations.
Cons:- Heating wire must be embedded in self-leveler or thinset, adding installation steps.
- The cable cannot be cut or shortened, so layout must fit the supplied length.
- Membrane and cable make this a larger project package than a small bathroom may need.
Best for: Basement bathroom renovators installing tile across a medium-sized floor who want heating cable and an uncoupling membrane in one kit.
Not ideal for: DIYers seeking a simple mat-only installation, or anyone whose planned cable layout requires cutting or shortening the heating wire.
- Heating coverage:50 sq. ft.
- Membrane coverage:70 sq. ft.
- Voltage and power:120V; 600W
- Current:5A
- Heating cable length:200 ft.
- Membrane thickness:0.26 in. (6.5 mm)
- Thermostat:Programmable touchscreen, 15A, with integrated Class A GFCI
- Warranty:Cable: 25 years; membrane: 50 years; thermostat: 3 years
Our verdict“Pick this for a tiled basement bathroom renovation where the included membrane and 50-square-foot cable match the planned floor area.”
LuxHeat 20 sq. ft. Electric Floor Heating Mat Kit with Programmable Touch Thermostat
For a small bathroom where a pre-spaced mat is easier to plan than loose cable, this 20-square-foot kit offers a practical middle ground between the 15-square-foot Warming Systems mat and larger systems such as the LuxHeat 50 sq. ft. Electric Radiant Floor Heating System. Its self-adhesive mat can be cut and turned to follow the room shape, while the heating wire itself must remain intact. The touchscreen thermostat includes a floor sensor and built-in GFCI, plus scheduling and child-lock features; a cable monitor alarm helps flag damage during installation. The mat works beneath several flooring types, but the wires still need embedding in thinset, mortar, or self-leveling underlayment. That requirement adds work, and 20 square feet may not cover a larger bathroom’s usable floor.
Pros:- Self-adhesive mat can be cut and turned to suit the room layout.
- Programmable touchscreen thermostat includes a floor sensor and built-in GFCI.
- Cable monitor alarm helps identify wire damage during installation.
- Heating kit has a 25-year limited warranty.
Cons:- Heating wire cannot be cut or shortened to change the coverage.
- Wire must be embedded in thinset, mortar, or self-leveling underlayment.
- 20-square-foot coverage may be too limited for a spacious bathroom.
Best for: DIY renovators with a small-to-medium basement bathroom who want a self-adhesive mat, programmable controls, and installation monitoring.
Not ideal for: Buyers with a large floor area or those unwilling to embed the heating wire in thinset, mortar, or self-leveling underlayment.
- Coverage:20 sq. ft.
- Mat dimensions:20 in. wide × 12.2 ft. long
- Voltage and power:120V; 240W
- Current:2.0A
- Power density:12W per sq. ft.
- Thermostat:OJ Microline UDG4-4999 programmable touchscreen
- Thermostat features:Floor sensor, built-in GFCI, dual sensing, child lock, and 7-day schedule
- Warranty:Heating kit: 25-year limited; thermostat: 3-year factory
Our verdict“Choose this mat when 20 square feet suits your bathroom and you want flexible mat placement with programmable controls.”
LuxHeat 20 sq ft Electric Floor Heating System with WiFi Thermostat, 120V
This model has the same 20-square-foot footprint as the non-WiFi LuxHeat mat, but its main distinction is remote control through a WiFi programmable thermostat. That can be useful in a basement bathroom with an irregular schedule: the 7-day programming, floor sensor, and GFCI protection support routine control, while remote monitoring gives more flexibility than the standard touchscreen kit. The mat is self-adhesive and can be repositioned to suit the layout, and its UL-certified cable is listed for wet locations. Compared with the Warming Systems 15 Sq Ft kit, it covers more area and adds WiFi, though the Warming Systems package includes an installation monitor. This LuxHeat still requires embedded wire, and the wire cannot be cut, so smart controls do not remove the need for careful installation planning.
Pros:- WiFi touchscreen thermostat supports remote control and monitoring.
- Includes a floor sensor, built-in GFCI, and cable monitor alarm.
- Self-adhesive mat can be repositioned to fit the floor layout.
- UL-certified heating cable is listed for wet locations and has a 25-year limited warranty.
Cons:- Heating wire cannot be cut or shortened.
- Wire must be embedded in thinset, mortar, or self-leveling underlayment.
- Remote controls may be unnecessary for buyers who prefer a basic programmable thermostat.
Best for: Homeowners with a 20-square-foot basement bathroom who want to adjust or monitor floor heating remotely.
Not ideal for: Buyers who do not need WiFi control, need more than 20 square feet of coverage, or want to avoid embedding heating wire in underlayment.
- Coverage:20 sq. ft.
- Mat dimensions:20 in. wide × 12.2 ft. long
- Voltage, power, and current:120V; 240W; 2A
- Thermostat:OJ Microline UWG4-4999 WiFi programmable touchscreen
- Thermostat features:Floor sensor, built-in GFCI, 7-day programming, child lock, and power logging
- Heating wire:1/8 in. diameter, dual-wire technology with aluminum shield
- Installation and certification:Indoor installation under tile, laminate, and other flooring; UL certified and listed for wet locations
- Warranty:25-year limited warranty
Our verdict“Choose this over the standard LuxHeat 20-square-foot mat if remote thermostat access is worth the added smart-control feature for your bathroom.”
LuxHeat 150 Sq Ft Electric Radiant Floor Heating Kit with Thermostat, 120V
With 150 square feet of coverage, this kit is aimed at a large basement bathroom or a broader tiled area, not a compact powder room. Two self-adhesive mats and two cable monitors are included, along with a floor sensor and a thermostat with built-in GFCI. The mats can be repositioned, but the heating wires must remain uncut and be embedded in approved underlayment or mortar. Compared with the LuxHeat 50 sq. ft. Electric Radiant Floor Heating System, this offers three times the stated coverage but leaves out that model’s programmable touchscreen and uncoupling membrane. Its thermostat is non-programmable, so control is more basic, and the mats must be connected in parallel rather than in series. The larger layout also calls for careful planning and appropriate electrical installation.
Pros:- Two mats provide a combined 150 sq. ft. of coverage.
- Includes two cable monitors, a floor sensor, and a thermostat with built-in GFCI.
- Mats can be repositioned to fit the installation layout.
- Heating cables are UL certified and designed for wet locations.
Cons:- Thermostat is non-programmable, unlike the programmable control on the LuxHeat 50 sq. ft. kit.
- Mats must be connected in parallel, not in series.
- Heating wire cannot be cut and must be embedded in approved underlayment, thinset, or mortar.
Best for: Owners heating a large basement bathroom or connected floor area who need up to 150 square feet of coverage and can plan a parallel connection.
Not ideal for: Small-bathroom renovators or buyers who want scheduled thermostat control or an included uncoupling membrane.
- Coverage:150 sq. ft.
- Voltage:120V
- Current and power:15A; 1800W
- Heating output:12W per sq. ft.
- Mat dimensions:20 in. wide × 91.5 ft. combined length
- Thermostat:OJ Microline UTN4-4999, non-programmable, dual air/floor sensing, built-in GFCI
- Included components:Two heating mats, two cable monitors/alarms, thermostat, and floor sensor
- Warranty:Heating kit: 25-year limited; thermostat: 3-year factory
Our verdict“Pick this for a genuinely large basement floor area when broad coverage matters more than programmable controls or an included membrane.”
LuxHeat 45 Sq Ft Electric Floor Heating System with Programmable Thermostat, 240V
For a basement bathroom with enough open floor area for a generous comfort zone, this 45-square-foot self-adhesive mat offers a more contained installation than LuxHeat’s 120-square-foot cable kits. Its 240V, 540W output is suited to a dedicated heated floor area, while the programmable thermostat pairs dual air/floor sensing with a built-in GFCI and a seven-day schedule. The mat can be arranged around the room’s layout, but its heating wire cannot be cut or shortened, so careful planning matters around fixtures and obstructions. Unlike the 120-square-foot Wi-Fi cable kit, this model does not list app control; in return, it provides a mat format that may be easier to position than loose cable. Installation still requires embedding the wires in thinset, mortar, or self-leveling underlayment.
Pros:- Self-adhesive mat can be arranged to suit the installation area.
- Programmable thermostat includes dual air/floor sensing and built-in GFCI protection.
- Seven-day scheduling and child lock allow more controlled operation.
- Suitable for tile, laminate, and other flooring when embedded as directed.
Cons:- Heating wire cannot be cut or shortened, limiting adjustments around obstacles.
- Requires embedding the wires in thinset, mortar, or self-leveling underlayment.
- Does not include the Wi-Fi control offered by LuxHeat’s 120-square-foot cable kit.
Best for: Homeowners heating a mid-size basement bathroom who want a programmable thermostat and a self-adhesive mat rather than a larger loose-cable layout.
Not ideal for: Owners of very small bathrooms or rooms with many fixed obstacles, because the 45-square-foot mat cannot be trimmed at the heating wire; skip it if Wi-Fi control is a priority.
- Coverage:45 sq ft
- Mat dimensions:20 in wide x 27.4 ft long
- Voltage:240 V
- Power:540 W
- Current:2.25 A
- Thermostat:OJ Microline UDG-4999 programmable thermostat
- Included components:Self-adhesive heating mat, cable monitor/alarm, thermostat, and floor sensor
- Warranty:25-year limited heating-system warranty; 3-year thermostat factory warranty
Our verdict“Choose this mat for a mid-size basement bathroom when you want programmable controls and a more contained coverage area than LuxHeat’s larger cable kits.”
LuxHeat 120 sq ft 240V Underfloor Heating Cable Kit with WiFi Thermostat
This kit is the lineup’s large-area choice for a basement bathroom where a substantial portion of the floor needs heating. Its 120-square-foot cable layout and 240V, 1,440W output offer four times the listed coverage of the LuxHeat 45-square-foot mat, though the loose cable calls for more layout work than a mat. The included Wi-Fi thermostat supports app connection, voice control, and programmable schedules, making it easier to adjust heating remotely than with the 45-square-foot programmable kit. Air and floor sensing, Class A GFCI protection, strapping, and an installation alarm round out the package. The main planning constraint is firm: the 480-foot cable cannot be cut or shortened, and it must be embedded in thinset, mortar, or self-leveling underlayment.
Pros:- Covers 120 sq ft at 3-inch spacing for large floor areas.
- Wi-Fi thermostat supports app connection, voice control, and programmable schedules.
- Includes floor sensor, cable strapping, and installation alarm.
- Dual-wire design with aluminum shield is specified to reduce electromagnetic fields.
Cons:- The 480-foot heating cable cannot be cut or shortened.
- Cable installation and embedding require more layout work than a self-adhesive mat.
- Requires a 240V electrical supply and suitable underlayment.
Best for: Owners of large basement bathrooms who want broad heated coverage, are comfortable laying cable, and value app or voice control.
Not ideal for: Small bathrooms or installers seeking a simple mat layout; the 120-square-foot coverage and uncuttable cable require careful planning, and the kit needs a compatible 240V supply.
- Coverage:120 sq ft at 3-inch spacing
- Voltage:240 V
- Power:1,440 W
- Current:6.0 A
- Cable length:480 ft
- Cable diameter:1/8 in
- Thermostat:UWG5-4999 Wi-Fi programmable thermostat with Class A GFCI
- Temperature sensing:Air and floor
- Warranty:25-year limited heating-system warranty; 3-year thermostat factory warranty
Our verdict“Pick this kit over the 45-square-foot LuxHeat mat when your basement bathroom needs broad coverage and you can plan a 240V cable installation.”
LuxHeat 120 sq. ft. Electric Radiant Floor Heating System with Wi-Fi Thermostat and Uncoupling Membrane
For a basement bathroom renovation centered on tile, this kit stands apart by bundling a 145-square-foot uncoupling membrane with 120 square feet of heating cable. The membrane adds uncoupling, waterproofing, and load support, so buyers get more than heat components alone; that makes it a more complete tile-focused package than the LuxHeat 120-square-foot Wi-Fi cable kit, which includes cable, controls, and installation accessories but no membrane in its listed components. The Wi-Fi touchscreen thermostat offers remote control and scheduling, while the cable’s 120V rating may suit projects planned around a compatible 120V circuit. That electrical match needs checking: the thermostat is rated for 120V and 15A. The cable cannot be cut or shortened and needs thinset or self-leveler coverage, so the membrane does not remove the need for careful installation planning.
Pros:- Includes a 145-square-foot membrane designed for uncoupling, waterproofing, and load support.
- Wi-Fi touchscreen thermostat supports remote control and seven-day scheduling.
- Package includes cable, thermostat, floor sensor, alarm, and installation float.
- Cable is cULus certified and listed for wet locations.
Cons:- Heating cable cannot be cut or shortened and must be covered with thinset or self-leveler.
- Thermostat is rated for 120V and 15A, so the circuit must match its electrical requirements.
- Membrane-focused package is less suited to buyers installing non-tile flooring.
Best for: Tile-remodeling homeowners who want heating, Wi-Fi controls, and an included uncoupling membrane with waterproofing and load-support functions.
Not ideal for: Buyers installing laminate or seeking a kit with simple loose-cable installation; the included membrane is tile-focused, and the electrical circuit must match the 120V thermostat rating.
- Heating coverage:120 sq ft
- Voltage:120 V
- Amperage:12 A
- Power output:1,440 W
- Cable length and spacing:480 linear ft; 3-inch spacing
- Membrane:145 sq ft coverage; 0.26 in (6.5 mm) thick
- Thermostat:Wi-Fi programmable touchscreen with integrated Class A GFCI
- Certifications:cULus certified cable; membrane ANSI and TCNA approved
- Warranty:25-year LuxHeat warranty; 50-year Prova warranty
Our verdict“Choose this premium package for a tile basement bathroom when the included membrane is as important to your project as Wi-Fi-controlled floor heat.”
How We Picked
I compared the 13 kits around the decisions that matter in a basement bathroom: usable heated coverage, voltage fit, control type, included installation components, and compatibility with the intended floor finish. I gave more weight to products that make a clear case for a common bathroom project—such as a compact floor zone, larger open area, or tile installation—than to a larger coverage figure by itself. Basement projects also call for careful planning around the subfloor, moisture conditions, floor assembly, and electrical work, so I treated clarity and practical fit as key parts of usability.
The ranking favors balanced choices with a defined use case over kits that are merely bigger or more feature-heavy. Membrane-equipped options rank well for buyers planning tile, while simpler kits can make more sense when the floor assembly already suits the installation method. Wi-Fi controls add convenience, but they do not outrank the right coverage and electrical fit. Product details supplied for this roundup do not establish every technical specification or installation requirement, so I recommend checking each manufacturer’s current instructions and confirming electrical plans with a qualified professional before buying.
Factors to Consider When Choosing Best Basement Bathroom Floor Heating Kits
Choosing a heating kit starts before selecting a thermostat or comparing coverage labels. I would first map the floor that can actually be heated, then check the electrical supply and flooring assembly; those choices narrow the field more reliably than brand preference.
Measure the Open Floor, Not the Whole Bathroom
To estimate the heated area, subtract space taken by a vanity, toilet, tub, shower, and other fixed features from the room’s total floor area. A kit sized to the entire room may not fit the clear floor area, and cutting or altering heating cable is not a safe way to make an oversized system fit. For a small powder room or narrow walkway, the 15–20 sq. ft. options illustrate why compact coverage can be a better match than a 45–50 sq. ft. mat. Larger 100–150 sq. ft. kits make more sense when the usable floor area is genuinely broad. Check the product’s layout guidance and minimum spacing requirements before settling on a size.
Confirm 120V or 240V Before Choosing a Kit
The lineup includes 120V mats and 240V choices, and that distinction affects the electrical plan—not simply the product label. Check the circuit available for the bathroom and the kit’s installation requirements before ordering; do not assume that a nearby outlet or existing circuit can support a floor-heating system. A 240V option may fit a project with the correct supply, while a 120V product may be the more straightforward match in another home. Electrical capacity, thermostat compatibility, and required protection should be confirmed with the manufacturer’s instructions and a licensed electrician. Choosing voltage late can lead to extra work or a kit that cannot be installed as planned.
Match the Heating Method to the Floor Assembly
Many products here are mats, while the 120 sq. ft. 240V LuxHeat option is described as a cable kit. Mats can simplify layout across an open, regular floor area; cable formats may offer more layout flexibility, depending on the manufacturer’s system and installation rules. That flexibility does not mean the cable can be placed wherever convenient: spacing, turn radius, and covered area must follow the supplied instructions. Measure around obstacles before deciding which format suits the room. Ask the installer to confirm the selected kit is approved for the planned subfloor and finish.
Decide Whether an Uncoupling Membrane Fits Your Tile Plan
Some kits in this roundup include an uncoupling membrane, including 45 sq. ft. and 120 sq. ft. LuxHeat options and the 50 sq. ft. VEVOR system. This can make a membrane-equipped kit appealing when the project calls for a tile assembly designed around that layer. It does not remove the need to prepare the substrate correctly or follow the flooring and heating manufacturers’ directions. If your installation already includes a compatible membrane, buying another may add material and installation complexity without serving your plan. Compare the full floor assembly—not just the kit contents—with your tile installer before choosing.
Choose Controls for Your Routine, Not for Their Feature List
Programmable thermostats suit buyers who want heating to follow a regular schedule, while Wi-Fi models can offer remote access where connectivity and setup are reliable. Touchscreen controls may feel more direct to use, but they do not change how much floor the mat covers or whether it fits the electrical plan. For a rarely used basement bathroom, remote control may be useful for warming the floor before a visit; for a bathroom used on a steady daily schedule, basic programming may cover the need. Check which thermostat is included and whether its functions match your preferred routine. Avoid paying for connected features if you do not expect to use them.
Plan for Basement Conditions and Installation Checks
Basement bathrooms can have moisture and subfloor conditions that differ from rooms above grade, so floor heating should be one part of a suitable floor system rather than a fix for a damp space. Address water intrusion, surface preparation, and any required waterproofing before installing heat. Confirm that the planned floor finish, setting materials, and system are approved together, and follow the stated testing steps before and during installation. Since a finished floor can make repairs disruptive, keep the layout and electrical records for future reference. A qualified installer can check the substrate, circuit, and assembly before the heating mat or cable is covered.
Frequently Asked Questions
How much floor-heating coverage should I buy for a basement bathroom?
Base the choice on the open floor area where the system can be laid, not the bathroom’s full footprint. Remove fixed fixtures and built-in cabinetry from your estimate, then check the kit’s installation plan for spacing and coverage rules. The 15–20 sq. ft. products in this roundup point to compact zones, while the 100–150 sq. ft. kits are aimed at much larger areas. Do not plan to cut a mat or cable to make it fit unless the manufacturer specifically allows the exact modification. If the room layout is irregular, sketch it and confirm the fit with the manufacturer or installer.
Should I choose a 120V or 240V floor-heating kit?
Choose based on your home’s electrical supply and the kit’s instructions, not on a general assumption that one voltage is better for every bathroom. This roundup includes many 120V options and several 240V products, including a 45 sq. ft. mat and larger LuxHeat choices. Your circuit capacity, thermostat requirements, and local electrical rules all affect suitability. Have an electrician confirm the plan before ordering, especially if the bathroom needs new wiring or circuit work. A kit that does not match the electrical setup can add expense and delay.
Is a kit with an uncoupling membrane worth choosing?
It can be a sensible match when your tile installation is designed to use an uncoupling membrane and you want that component included with the heating system. The 45 sq. ft. LuxHeat, 50 sq. ft. VEVOR, and 120 sq. ft. LuxHeat options give membrane-inclusive choices across different coverage needs. The membrane does not replace correct substrate preparation, waterproofing where required, or adherence to the floor assembly instructions. If your installer already plans a compatible membrane, compare whether the kit’s included layer fits that plan before buying. The right answer depends on the complete tile system, not just one feature on the box.
Can electric floor heating serve as the main heat source in a basement bathroom?
Do not assume a floor-warming kit can replace the room’s primary heating system. Suitability depends on heat loss, insulation, room size, climate, and the system’s output and installation design—details that should be checked against the manufacturer’s documentation. Many buyers select radiant floor heating for warmer flooring and added comfort rather than as the sole source of space heat. Ask an HVAC professional or qualified installer to evaluate the bathroom if you intend to rely on it for room heating. Keep any required existing heat source in the plan until that assessment confirms otherwise.
Do I need a Wi-Fi thermostat for a basement bathroom?
No; a Wi-Fi thermostat is most useful when remote adjustment or app-based scheduling fits your routine. The roundup includes connected options in both compact and larger coverage sizes, but connectivity does not make a kit better suited to a mismatched floor area or circuit. A programmable thermostat may be enough if you use the bathroom on a predictable schedule and prefer local controls. Consider whether the basement has dependable network access and whether other household members can operate the thermostat easily. Choose the control style after confirming the coverage and electrical requirements.
Conclusion
For the most balanced bathroom-focused choice, I recommend the LuxHeat 45 sq. ft. system with uncoupling membrane as best overall, particularly for a tile project with a moderate open floor area. The 100 sq. ft. electric radiant mat is my best-value direction for buyers who need broader coverage and prefer a straightforward programmable-thermostat format, while the 120 sq. ft. LuxHeat Wi-Fi system with membrane is the best premium fit for a larger tile installation that benefits from connected controls. Beginners with a small, regular floor zone should compare the 20 sq. ft. programmable LuxHeat kit for simpler scheduling; buyers who prioritize remote access can look at its 20 sq. ft. Wi-Fi counterpart. For very compact spaces, the 15 sq. ft. Warming Systems kit merits a look, and buyers with a verified 240V supply can compare the 45 sq. ft. or 120 sq. ft. LuxHeat options. Before choosing any of them, match actual uncovered floor area, voltage, and the planned floor assembly to the installation instructions.
Halloween Picks
halloween
As an affiliate, we earn on qualifying purchases.
